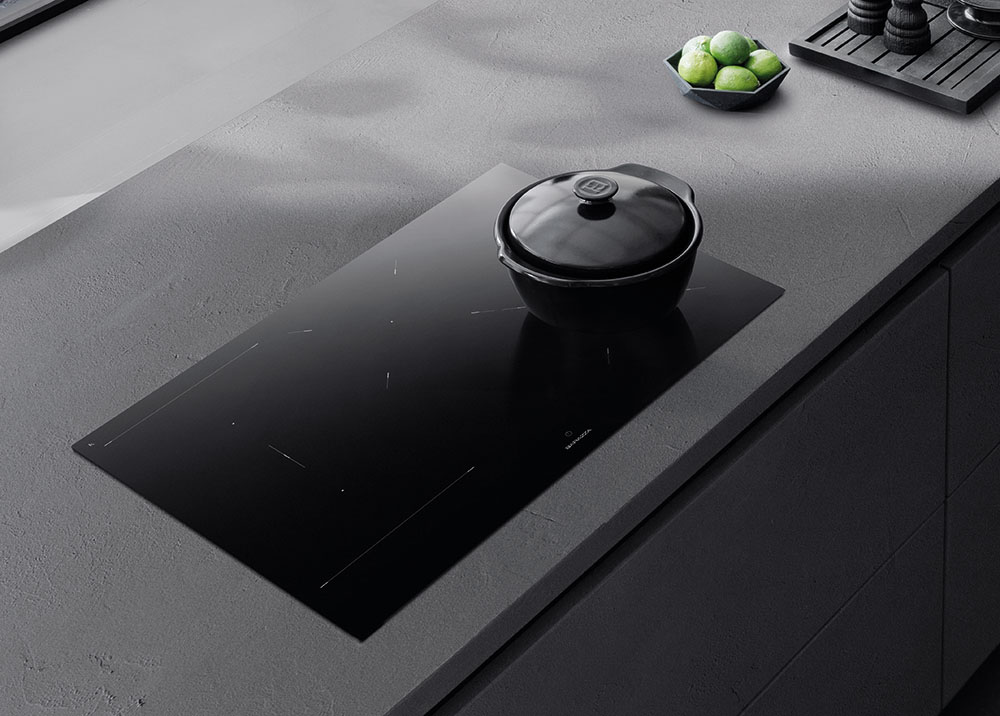

75 cm City built-in and flush hob

4 induction zones

1PIDC75N

Technical Sheet - 75 cm City built-in and flush hob

Description

  • Touch controls
  • functions: power management, Chef Cook, Bridge, automatic pan recognition, Booster, selective pan detection, pause/reminder function, cooking end timer 1-600’, minute minder, automatic preheating, keep warm
  • safety devices: electronic child-safety lock, residual heat indicator, overflow alarm, safety switch-off
  • minimum pan diameter: ø 110 mm
  • adjustable power levels: 1.4 - 1.5 - 1.6 - ... - 7.2 - 7.3 - 7.4kW
  • maximum absorbed power: 7.4 kW

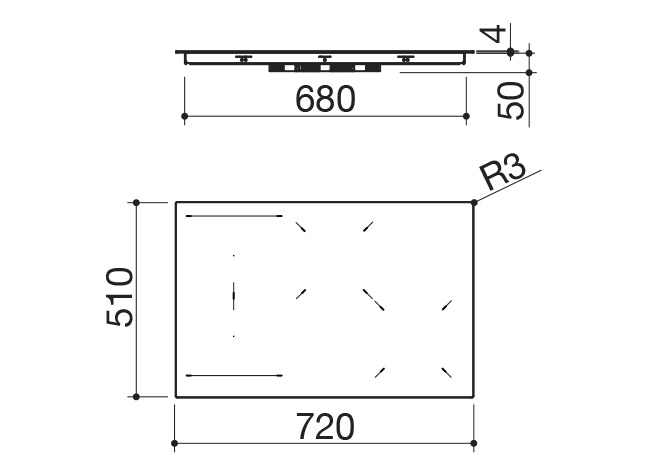

  • 70X49 cm cut out
  • flush-top: check technical sheet

Induction zone power:

  • 2 zones ø 200mm: 2.3-3 kW (*)
  • 2 Octa zones: 2.1-3 kW (*)
  • (*) with Booster function

1PIDC75N

Detailed Features

The Touch Control commands allow for independent, easy, and precise adjustment of settings for each specific cooking zone.

With induction technology, heat is generated only on the base of the pan and transferred directly to the food. With an efficiency rate of 90%, cooking times are greatly reduced. The hob surface remains cool, offering enhanced safety and ease of cleaning.

This function allows users to set the maximum power level the hob can absorb, helping to prevent electrical overloads.

Allows two adjacent cooking zones to be combined, expanding the usable surface area. Ideal for large cookware.

The hob automatically detects when a pan is placed on it, activating the interface for quick parameter adjustment.

This function reduces cooking time by boosting the selected zone to maximum power, especially useful for heating large amounts of liquid.

The induction plate only operates when it detects metallic cookware of suitable size, preventing activation by other objects.

Temporarily pauses cooking on the selected zone. Cooking resumes with a single touch.

Lets you set a specific cooking time (from 1 up to 99–600 minutes, depending on the model) after which the zone switches off automatically, ensuring control and saving energy.

Prevents accidental changes to the hob settings, particularly by children.

An “H” on the display indicates residual heat on the hob, caused by heat reflected from the cookware.

If liquid spills onto the command zone, the hob emits a sound and switches off automatically until the liquid is removed.

After a set period at a given power level, the hob automatically switches off to prevent risks from user oversight.

Barazza hobs are available in various widths designed to fit the most common standard kitchen unit modules.

Sets the power level between 0 and 1, allowing food to be kept warm without the risk of burning.

Allows the zone to reach temperature faster: after selecting a power level, the zone heats at maximum output for a preset time before stabilising at the chosen level.

An independent timer not linked to a specific zone, useful for tracking elapsed time without turning off the hob.

Three zones of the hob are automatically set at power levels 2, 6 and 9. In this way you can move from one level to another simply by moving the pan on the hob.

Installation Method

Ensures perfect alignment with the worktop

The linearity of the glass is enhanced by the recessed installation, which reveals its thickness.
